OSBOURNE-ER Osbourne-ER Rugged Nvidia Jetson AGX Orin Carrier and Solution

Optimized AGX Orin solution for rugged embedded applications
Latching I/O connectors provide a reliable solution for rugged environments

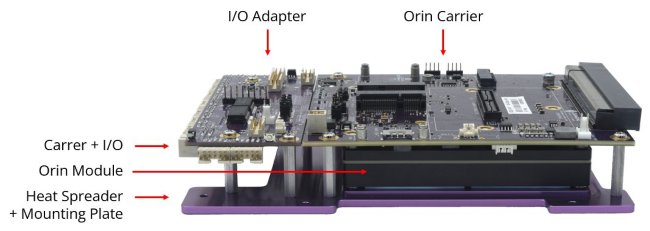

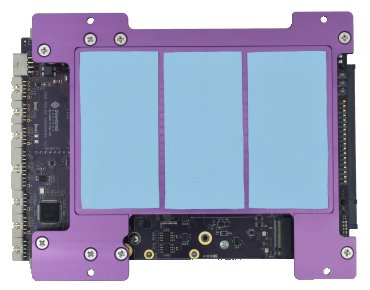

Heat spreader mounting plate provides slimmer design and more efficient cooling

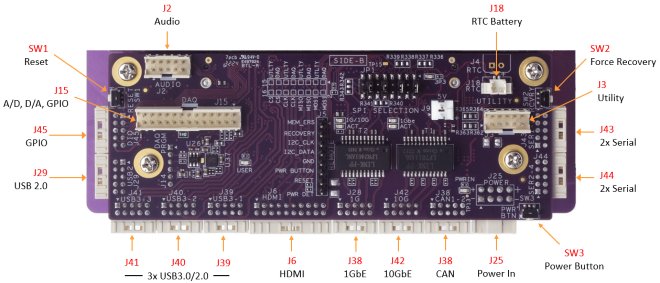

1x 1G/2.5G/5G/10G Multi-Gigabit Ethernet port
1 10/100/1000Mbps Ethernet Port
3x USB 3.2 ports with USB 2.0 fallback
1 fixed USB 2.0 port
1x HDMI 2.0a/b directly from Orin module
2x software configurable RS-232/422/485 ports with TTL option on one port
2x fixed RS-232 ports
Audio I/O via ALC5640 CODEC
8 Digital I/O with 3.3/5V selection
Data acquisition subsystem with 6 12-bit A/D, 2 12-bit D/A, 12 GPIO 3.3V
2x CAN 2.0 ports with non-isolated transceivers
Utility connector with I2C, SPI, Reset, and Power button

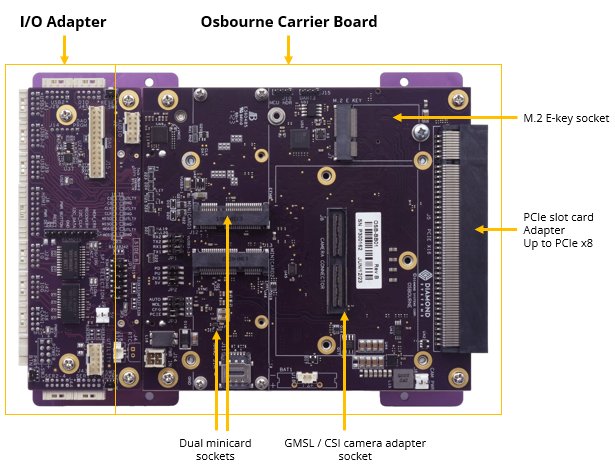

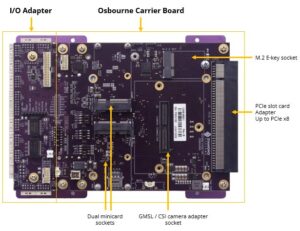

1 mPCIe full-size socket with PCIe and USB support
1 M.2 M Key (2280 / 2242) NVMe expansion slot (4 lane PCIe Gen 3)
1 M.2 E key 2230 socket
4 x4 or 8 x2 lane CSI-2 camera interface using industry-standard camera adapter socket
Dimensions 165 L x 137 W x 36mm H / 6.5 x 5.4 x 1.4″ (heat spreader footprint, fully assembled unit)
Power input 7-20VDC
Operating temperature -25 to +78C (AGX Orin 32GB/64GB), -40 to +83C (AGX Orin Industrial)
Weight: 425g / 15.0 oz (Kit without Orin module), 704g / 24.9oz (Full assembly with Orin module)

OSB-ER-32G-1T	Osbourne-ER with AGX Orin 32GB module, 1TB external flash, Linux OS
OSB-ER-32G-2T	Osbourne-ER with AGX Orin 32GB module, 2TB external flash, Linux OS
OSB-ER-64G-1T	Osbourne-ER with AGX Orin 64GB module, 1TB external flash, Linux OS
OSB-ER-64G-2T	Osbourne-ER with AGX Orin 64GB module, 2TB external flash, Linux OS
OSB-ER-64GXT-1T	Osbourne-ER with AGX Orin 64GB industrial module, 1TB external flash, Linux OS
OSB-ER-64GXT-2T	Osbourne-ER with AGX Orin 64GB Industrial module, 2TB external flash, Linux OS
OSB-ER-KIT	Osbourne-ER kit for self-assembly; includes carrier, I/O adapter, and heat spreader mounting plate
